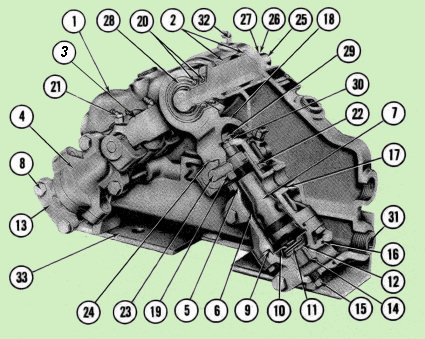

5304 Complete Pump Breakdown

Reference Number Description of Part Number Quantity Required Part Number
1 Air chamber (sleeve bearings) 1 20458D1
2 Bearing for air chamber (sleeve type) 2 11445A
Crosshead with bushing 2 11436B1
4 Cylinder body with steel liners 1 11423C3
Cylinder liner, upper 1 11423C11A
Cylinder liner, lower 1 11423C12A
N/A  7 Plunger assembly, old style 1 11424A4
7 Plunger assembly, new style 1 18460A1
Cap screw 8 19101A34
O-ring  2 5876A17
10  Retainer for suction valve 2 11431A
11 Spring for suction valve 2 11432A
12  Suction valve 2 17714A1
13 Lower cap with stainless steel seat 2 20494B10
14 Seat, stainless steel, for lower cap 2 M2168A2
  Cap screw 4 19101A13
15 Pipe plug 2 5022A4
16 O-ring 2 5876A16
17 O-ring 2 5876A68
  Link assembly with crosshead 2 11435B5
18 Link and bearing assembly 2 11434B2
19 Bushing or needle bearing for link 2 5806A10
20 Bearing, link to drive shaft 2 5775A15
22 Bushing, bronze, for crosshead 2 5806A11
23 Pin for link 4 11437A
24 Roll pin, split tube, stainless steel 4 10789A12
25 Shaft, drive, solid shaft 1 17507B
26 Washer, pulley end of shaft 1 5030A64
27 Retaining ring for pulley end of shaft 1 10848A8
  Drive cap, for end of shaft for 1-3/8" spline PTO drive 1 11439A
  Drive cap, for end of shaft for 1-1/8" spline PTO drive 1 11439A1
  Set screw, to lock drive cap 2 14502A
N/A Crank pin, belt drive, old style 1 11521A
N/A Crank pin, power take-off, old style 1 11440A
  Washer, between link and roller bearing 1 5030A73
28 Retaining ring 1 10848A3
N/A Cap screw, 2.75" for crank pin &shaft 1 19103A18
N/A Cap screw, 3.5", for crank pin & shaft 1 19103A24
29  Nut, plunger to crosshead 2 5027A53
30 Lockwasher, 1-1/2" 2
32 Pipe plug 5 19109A35
33 Grease fitting 1 5725A
34 Reducer bushing, 3/4" x 1/4" 1 5004A1
  Cover, power trade-off 1 11442C
  Cap screw, cover to pump 2 19099A2
  Lockwasher, cap screw for cover 2 5454A1
N/A Chain and S-hook 1 8515A8
  Base for pump 1 11509C4A
Cap screw, pump to base 2 19101A7
Parts kit

2

14232A 1S
