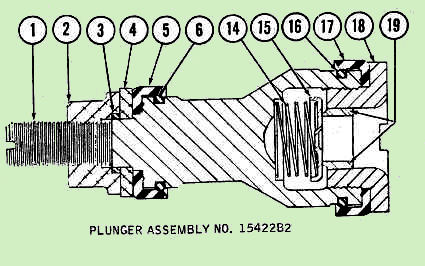

15422B2 PLUNGER ASSEMBLY

Reference Number Description of Part Number Quantity Required Part Number
1 Plunger stem or casting 1 18241B
2 Nut, follower 1 15424A
3 O-ring 1 5876A68
4 Washer 1 5030A110
5 Plunger cup, upper 1 6737A21
6 O-ring 1 5876A13
14 Spring for plunger valve 1 11432A
15 Valve for plunger 1 17714A1
16 O-ring 1 5876A29
17 Plunger cup, lower 1 6737A20
18 Follower with stainless steel seat 1 15462A1
19 Seat, stainless steel for follower 1 M2168A2
